Palletizing Robots

Machine
Designed specifically for palletizing applications, Kawasaki's palletizing robot line consists of seven unique models with payload capacity from 80 kg to 700 kg to suit most needs. With industry leading work range, reliability, and speed, Kawasaki's palletizing robots help companies improve production line efficiency.
Join inquiry
DETAIL
Related styles and accuracy specifications can be adjusted to meet customer needs. Please contact the business unit for details.

　Photo　 　Model　 Degrees of
Freedom
(axes)		 Payload
(kg)		 Max.
Reach
(mm)		 Positional
Repeatability
(mm)		 Motion Range (°) Max. Speed (°/s) Moment
of
inertia
(kg•㎡)		 Palletizing
Capacity
(cycle/hour)		 Mass
(kg)		 Mounting　　 Installation Environment Controller / Power
Requirements
(kVA)
Arm Rotation
(JT1)		 Arm Out-in　
(JT2)		 Arm Up-down
(JT3)		 Wrist Swivel
(JT4)		 Arm Rotation
(JT1)		 Arm Out-in
(JT2)		 Arm Up-down
(JT3)		 Wrist Swivel
(JT4)		 Ambient Temperature (°C) Relative Humidity (%)

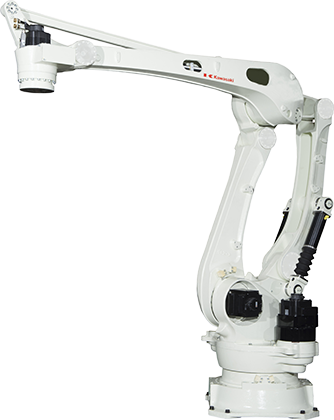

CP180L 4 160 3255 ±0.05 ±160 +95 - −46 +15 ~−110 ±360 140 125 130 400 50 2050 1600 Floor 0 - 45 35 - 85 (No dew, nor frost allowed) F03 / 12
CP300L 4 300 3255 ±0.05 ±160 +95 - −46 +15 ~−110 ±360 115 100 100 250 100 1700 1600 Floor 0 - 45 35 - 85 (No dew, nor frost allowed) F03 / 12

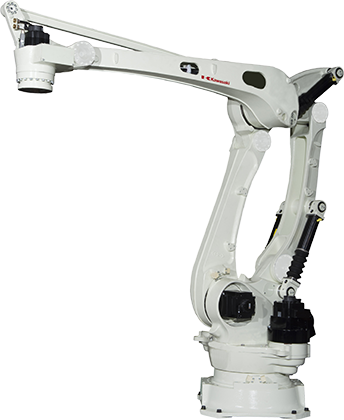

CP500L 4 500 3255 ±0.05 ±160 +95 - −46 +15 ~−110 ±360 85 80 80 180 250 1000 1650 Floor 0 - 45 35 - 85 (No dew, nor frost allowed F03 / 12

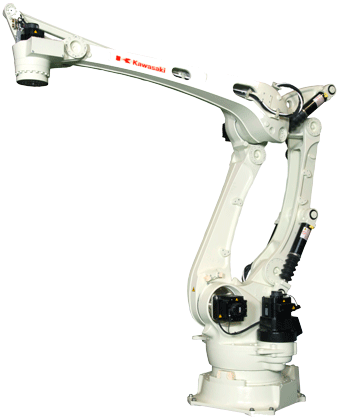

CP700L 4 700 3255 ±0.05 ±160 +95 - −46 +15 ~−110 ±360 75 65 65 170 500 900 1650 Floor 0 - 45 35 - 85 (No dew, nor frost allowed) F03 / 12

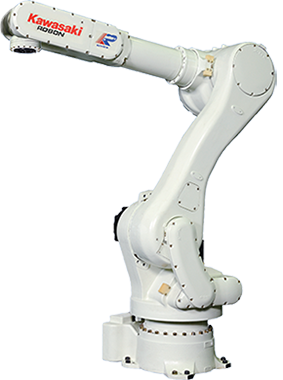

RD080N 5 80 2100 ±0.07 ±180 +140- −105 +40 ~−205 ±360 180 180 175 360 13.7 900 540 Floor 0 - 45 35 - 85 (No dew, nor frost allowed) F03 / 12
